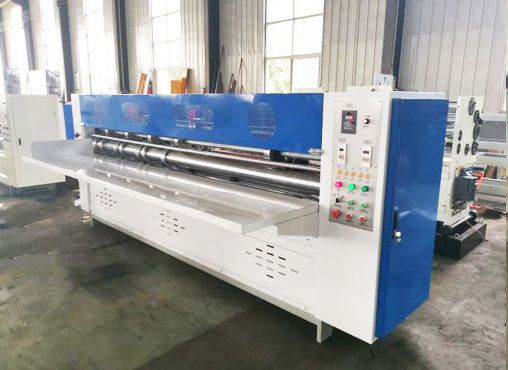

2600MM-Thin Blades Slitter & Scorer Machine

Fuction and Features:

  • Slitter Part : Adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy ,non-pressing and non-burr.
  • Grinding Part : Adopt automatic and manual adjustment ,two kinds of pneumatic grinding type,it could be grinding when working , improve work efficiency.
  • Scorer Part : Adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
  • Adopt DELTA (CHINA Famous)Brand Inverter operate.
Category:

Description

Model 2600MM
Description Thin Blades Slitter & Scorer Machine
Machine Parameter  机械参数
Model 2600mm
Width of paper 2600mm
The most speed of cutting paper 141m/min
Slitter & scorer blades 4 blades 6 creasings
Minimum Slitting width 125mm
Minimum scoring width 30mm
Outer diameter of thin blade 200mm
Thickness of thin blade 1mm
Power 4.0KW
Weight 2500KG
Inverter Delta(Taiwan)
Electric Components Schneider(France)
